The Versatility and Industrial Impact of the 150-ton H-Frame Hydraulic Press

The 150-ton H-Frame Hydraulic Press stands as a testament to the evolution and sophistication of industrial machinery. This versatile piece of equipment has revolutionized numerous manufacturing processes, thanks to its robust design, precise control, and high-pressure capabilities. This article delves into the intricacies of the 150-ton H-Frame Hydraulic Press, exploring its design, functionality, applications, benefits, and the significant impact it has had on various industries.

Design and Construction: The Backbone of Versatility

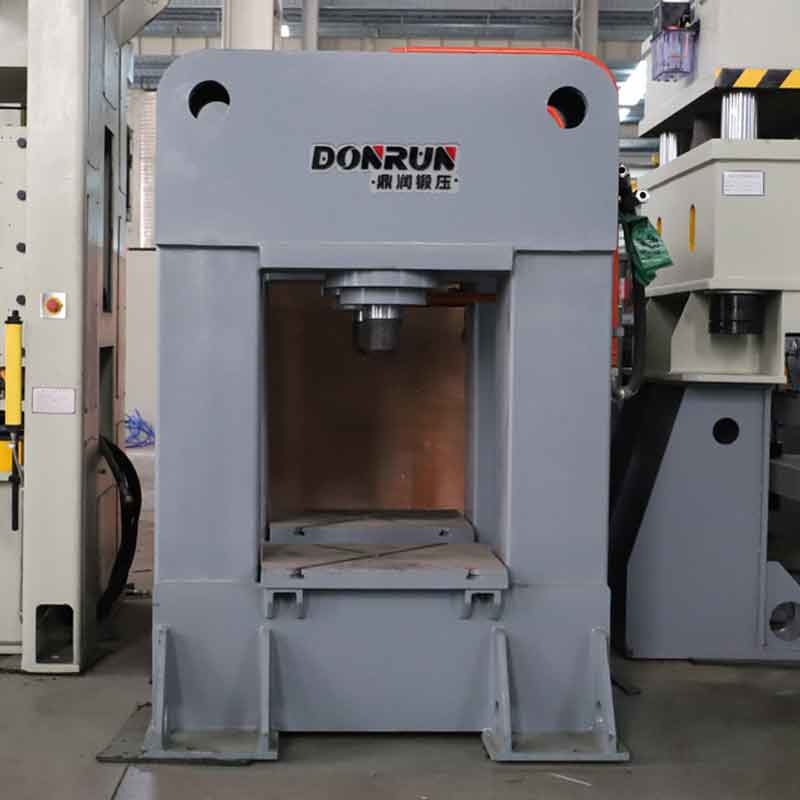

The design of the 150-ton H-Frame Hydraulic Press is both innovative and practical. The "H-Frame" refers to the shape of its main structural support, which resembles the letter "H" when viewed from the front. This design provides exceptional stability and rigidity, allowing the press to handle heavy loads with minimal deflection.

The frame itself is typically constructed from high-strength steel, ensuring durability and longevity even under constant use and high-pressure conditions. The press's hydraulic system is the heart of the machine, comprising a pump, valves, cylinders, and hoses. This system operates on the principle of Pascal's law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every part of the fluid and to the walls of the container.

The pump generates the hydraulic pressure, which is then controlled and directed by a series of valves. The cylinders, usually positioned vertically, contain pistons that move up and down in response to the pressure applied. These pistons are connected to the tooling or die sets that perform the actual pressing operation.

Functionality: Precision and Control at Its Core

The functionality of the 150-ton H-Frame Hydraulic Press is rooted in its ability to apply precise and controlled pressure. The operator can adjust the pressure and the speed of the piston's movement to suit the specific requirements of the task. This level of control is crucial for achieving consistent results and maintaining product quality.

The press also features a variety of safety mechanisms to protect both the operator and the equipment. These include emergency stop buttons, pressure relief valves, and load-holding valves that prevent the piston from dropping unexpectedly. Additionally, many modern presses are equipped with sensors and automated control systems that monitor the pressing process and alert the operator to any potential issues.

Applications: A Wide Range of Industries and Uses

The versatility of the 150-ton H-Frame Hydraulic Press is evident in its wide range of applications across various industries. Here are some of the most common uses:

Metalworking

In the metalworking industry, the press is used for forming, bending, and straightening metal sheets and components. It can also be used for punching holes, cutting, and embossing metal materials. The high pressure and precise control of the press make it ideal for creating intricate and complex metal parts.

Automotive

The automotive industry relies heavily on hydraulic presses for manufacturing components such as engine blocks, transmissions, and body panels. The 150-ton H-Frame Hydraulic Press is particularly useful for stamping and forming sheet metal into the desired shapes and sizes.

Aerospace

In the aerospace industry, precision and reliability are paramount. The press is used to manufacture components such as aircraft landing gear, wing assemblies, and fuselage sections. The ability to apply consistent and controlled pressure is crucial for ensuring the structural integrity of these components.

Electronics

The electronics industry uses hydraulic presses for assembling and testing electronic components. The press can be used to insert pins into connectors, crimp terminals, and assemble printed circuit boards. The precise control of the press ensures that delicate components are not damaged during the process.

Packaging

Hydraulic presses are also used in the packaging industry for forming, sealing, and cutting packaging materials such as cardboard, plastic, and foil. The press can be used to create custom packaging solutions that meet the specific needs of the product being packaged.

Benefits: Efficiency, Reliability, and Cost-Effectiveness

The 150-ton H-Frame Hydraulic Press offers numerous benefits that make it an invaluable asset to any manufacturing operation. Here are some of the most significant advantages:

Efficiency

The press operates quickly and efficiently, allowing manufacturers to produce large quantities of parts in a short amount of time. The precise control of the press also minimizes waste and reduces the need for rework, further enhancing productivity.

Reliability

The robust design and high-quality components of the press ensure that it can withstand constant use and high-pressure conditions. This reliability means that manufacturers can rely on the press to perform consistently and accurately over time.

Cost-Effectiveness

The initial investment in a 150-ton H-Frame Hydraulic Press may be significant, but the long-term benefits make it a cost-effective solution. The press can be used for a wide range of applications, reducing the need for multiple specialized machines. Additionally, the precise control and efficiency of the press help to minimize material waste and labor costs.

Impact on Industries: A Catalyst for Innovation and Growth

The 150-ton H-Frame Hydraulic Press has had a profound impact on various industries, driving innovation and growth in manufacturing processes. Here are some of the ways in which the press has contributed to industrial development:

Enhanced Product Quality

The precise control and consistent pressure application of the press enable manufacturers to produce high-quality parts that meet or exceed industry standards. This level of precision is crucial for industries such as aerospace and automotive, where product quality and reliability are paramount.

Increased Production Capacity

The efficiency and reliability of the press allow manufacturers to increase production capacity without compromising quality. This increased capacity enables businesses to meet growing demand and expand into new markets.

Facilitated Automation and Robotics

The versatility and modular design of the 150-ton H-Frame Hydraulic Press make it easy to integrate with automation and robotics systems. This integration allows manufacturers to automate repetitive and labor-intensive tasks, freeing up workers to focus on more complex and value-added activities.

Promoted Sustainable Manufacturing Practices

The precise control and efficiency of the press help manufacturers to minimize material waste and reduce energy consumption. These sustainable manufacturing practices contribute to a more environmentally friendly and sustainable industrial sector.

Future Trends: The Evolution of Hydraulic Press Technology

As technology continues to advance, so too will the design and functionality of the 150-ton H-Frame Hydraulic Press. Here are some of the future trends that are likely to shape the evolution of hydraulic press technology:

Increased Automation and Connectivity

Manufacturers are increasingly looking to automate and connect their manufacturing processes to improve efficiency and reduce costs. Hydraulic presses will continue to integrate with automation and robotics systems, as well as with the Internet of Things (IoT) and other digital technologies. This integration will enable real-time monitoring, predictive maintenance, and optimized production scheduling.

Enhanced Precision and Control

The demand for higher precision and control in manufacturing processes will drive the development of more advanced hydraulic press technology. This includes the use of sensors, machine learning algorithms, and other advanced technologies to improve the accuracy and repeatability of pressing operations.

Sustainable Manufacturing Solutions

As environmental concerns continue to rise, manufacturers will increasingly seek sustainable manufacturing solutions. Hydraulic presses will be designed to minimize energy consumption, reduce waste, and use more environmentally friendly materials. Additionally, manufacturers will look to repurpose and recycle hydraulic presses to extend their useful life and reduce environmental impact.

Conclusion: The Enduring Legacy of the 150-ton H-Frame Hydraulic Press

The 150-ton H-Frame Hydraulic Press stands as a testament to the ingenuity and innovation of the industrial sector. This versatile piece of equipment has revolutionized manufacturing processes across various industries, driving efficiency, reliability, and cost-effectiveness.

As technology continues to evolve, the design and functionality of the press will undoubtedly change. However, the fundamental principles that have made the press such a valuable asset to manufacturers will remain constant. The ability to apply precise and controlled pressure, combined with the robust design and reliability of the press, will continue to drive innovation and growth in the industrial sector for years to come.

In conclusion, the 150-ton H-Frame Hydraulic Press is not just a machine; it is a catalyst for progress and a symbol of the enduring legacy of industrial ingenuity. Its impact on manufacturing processes and the broader industrial sector is profound and far-reaching, and its influence will continue to shape the future of industry for generations to come.
